Flame retardant system: Using phosphorus and nitrogen as main flame retardant elements
The main purpose: Home appliances, new energy battery turnover box
Flammability rating: UL 94 V0
Glow Wire Grade: GWIT:775/3.0 and GWFI: 850/3.0
Features: Low density, low smoke, high flame retardant efficiency, low warpage, high rigidity
PS：We can provide you with free samples for evaluation and test, please feel free to contact us
Products Introduction: 5000G30D adopts unique process technology to ensure good compatibility between glass fiber and PP substrate, so it has the characteristics of high rigidity, high strength, good impact resistance, not easy to warp and deformation, and its flame retardant performance reaches UL 94 V-0 Level (1.5/3.0mm). 5000G30D has passed UL certification and meets the product requirements of RoHS, SVHC, PFOS&PFOA, 17P, Halogen-free, PAHs and other regulations. It also has the characteristics of good processing fluidity, low smoke generation and low mold corrosion.

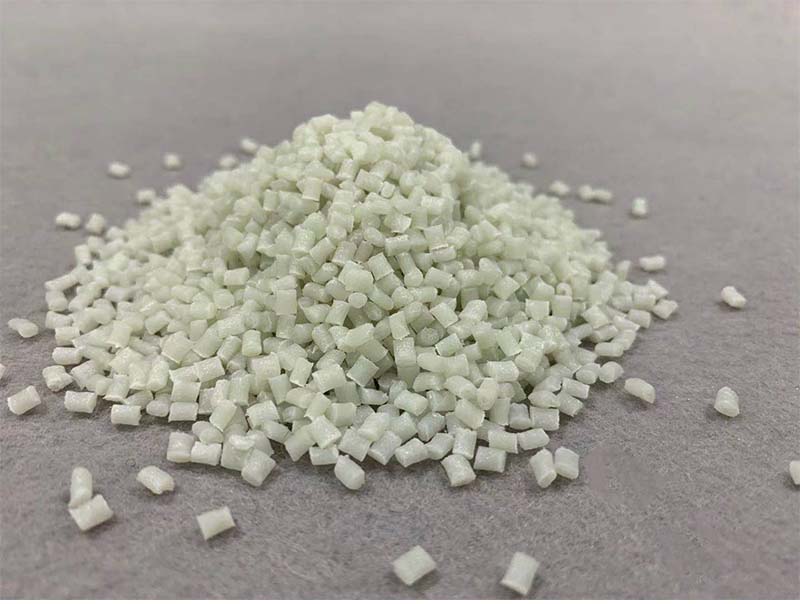

HFFR Glass Filled Reinforced PP
Application: Home appliances, new energy battery turnover box
Multiple certification guarantee
Reach Certification,
RoHs Certification,
ISO9001:2015 Certification,
IATF16949:2016 Certification, etc.
UL94 V0
Flame retardant performance: Polypropylene with phosphorus and nitrogen as the flame retardant elements
Temperature: GWIT:750/3.0 and GWFI:800/3.0
Characteristic: Good processing fluidity, low smoke generation and low mold corrosion.
| Specification | Test Method | Unit | Glass fiber reinforced HFFR PP |
| Density | ASTM D792 | g/cm3 | 1.32±0.02 |
| Melt Flow Index (230℃/2.16kg) | ASTM D1238 | g/10min | 5.0 |
| Heat Distortion Temperature | ASTM D 648 | ℃ | 155 |
| Molding Shrinkage | ASTM D 955-08 | % | 0.3-0.5 |
| Tensile Strength | ASTM D638 | MPa | 80 |
| Elongation at Break | ASTM D638 | % | 12 |
| Flexural Strength | ASTM D790 | MPa | 110 |
| Flexural Modulus | ASTM D790 | MPa | 6500 |
| Izod Notched Impact Strength | ASTM D256 | J/m | 80 |
| Comparative Tracking Index | GB/T 4207 | CTI:600 | Pass |
| Glow Wire | IEC 60695-2-13 | GWIT:750/3.0 | Pass |
| IEC 60695-2-12 | GWFI:800/3.0 | Pass | |
| Flammability | UL 94 | 1.5mm | V-0 |
| 3.0mm | V-0 |
Remark: The above laboratory test data are just for reference only; it's not a basis for quality assurance.

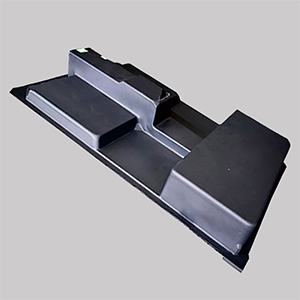

New energy battery shell (white)
New energy battery shell (black)

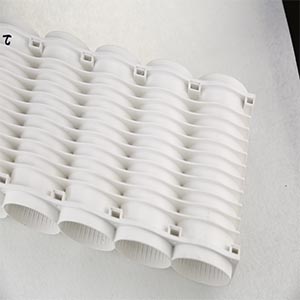

New energy battery shell
Dear customers, no need to worry about your products colors, POLYROCKS has professional colour matching department, providing free colour matching service. Any colour requirements, kindly please contact us by email: sales@polyrocks.com.
POLYROCKS focus on provide prompt pre/after-sales service, we have professional injection molding engineers and technical service engineers to provide accurate information and timely service. Any questions or needs, you are welcome to contact us by email: sales@polyrocks.com.
Any purchasing questions, welcome to contact our customer service, helps will be provided by them.
