High rigidity halogen-free flame retardant PP V0

Flame retardant system: Using phosphorus and nitrogen as main flame retardant elements.

Main application: Electrical products, construction industry products, etc.

Flammability rating: UL 94 V0.

Glow Wire Grade: GWIT:775/3.0 and GWFI: 850/3.0.

Features: Good flowability, high rigidity, low density, low smoke, and less corrosion to the molds.

PS:We can provide you with free samples for evaluation and test, please feel free to contact us.

Product Introduction

Product Introduction:The flammability of 5000AC can reach UL94 V-0 (1.5mm and 3.0mm), glow-wire test meets GWIT: 750/3.0 and GWFI 850/3.0. 5000AC has UL certificate and meets the requirements of RoHS, SVHC, PFOS&PFOA, 17P, Halogen-free, and PAHs, etc. 5000AC has the characteristics of good flowability, high rigidity, low density, low smoke, and less corrosion to the molds.

High rigidity halogen-free flame retardant PP V0


High rigidity halogen-free flame retardant PP V0


Product Feature

Needle Flame Tester

HFFR PP


Application: Electronic products, etc.


Multiple certification guarantee
Reach Certification,
RoHs Certification,
ISO9001:2015 Certification,
IATF16949:2016 Certification, etc.

Glow Wire Tester

UL94 V0


Flame retardant performance: Phosphorus and nitrogen as the flame retardant elements


Temperature: GWIT 750/3.0 and GWFI 850/3.0

Characteristic: Good flowability, high rigidity, low density, low smoke and less corrosion to the molds.

Property Index
SpecificationTest MethodUnitHigh rigidity halogen-free flame retardant PP
DensityASTM D792g/cm31.12
Melt Flow Index (230℃/2.16kg)ASTM D1238g/10min16
Mold ShrinkageASTM D955-08%0.92(vertical)
1.2(horizontal)
Tensile StrengthASTM D638MPa20
Elongation at BreakASTM D638%55
Flexural StrengthASTM D790MPa28
Flexural ModulusASTM D790MPa2000
Izod Notched Impact StrengthASTM D256J/m20
FlammabilityUL 941.5mmV-0
3.0mmV-0
3.0mm5VA
Glow WireIEC 60695-2-13GWIT:750/3.0Pass
IEC 60695-2-12GWFI:850/3.0Pass


Remark: The above laboratory test data are just for reference only; it's not a basis for quality assurance.

Application




  • Electrical enclosure

    Electrical enclosure

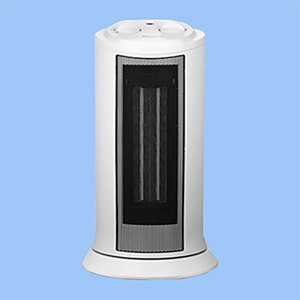

  • Heater

    Heater

  • Coil bobbin

    Coil bobbin
