Glass fiber reinforced & Anti aging FR PP V2

Flame retardant system: Using phosphorus and nitrogen as the main flame-retardant elements

Main application: Electronic products, etc.

Flammability rating: UL 94 V2

Glow Wire Grade: GWFI:850/3.0mm

Features: Glass fiber reinforced, low halogen, environmental protection, high flame retardant efficiency; low density, low smoke, high rigidity, high heat resistance.

PS:We can provide you with free samples for evaluation and test, please feel free to contact us


Product Introduction

Product Introduction: 5003G(+) flame retardant reaches UL 94 V-2 (1.5mm and 3.0mm), and the glow wire test passes GWFI:850/3.0. 5003G has passed UL certification and meets the requirements of RoHS, SVHC, 17P, PAHs and other regulations for products. It has the characteristics of low density of flame-retardant products, low smoke emission, high rigidity and high heat resistance.

Glass fiber reinforced


Glass fiber reinforced


Product Feature

Needle Flame Tester

FR Glass Fiber Reinforced PP


Application: Electronic products, etc.


Multiple certification guarantee
Reach Certification,
RoHs Certification,
ISO9001:2015 Certification,
IATF16949:2016 Certification, etc.

Glow Wire Tester

UL94 V2


Flame retardant performance: 5000G(+) Uses phosphorus, nitrogen and bromine as the main flame retardant elements


Temperature: GWFI:850/3.0

Characteristic: Low halogen and environmental protection; high flame retardant efficiency; flame retardant does not precipitate; high rigidity and high heat resistance.

Property Index
SpecificationTest MethodUnitGlass fiber reinforced & Anti aging FR PP
DensityASTM D 792g/cm31.05
Melt index (230℃/2.16kg)ASTM D 1238g/10min14
Mold shrinkageASTM D 955-08%0.6-0.9
Tensile StrengthASTM D 638MPa55
Elongation at breakASTM D 638%15
Bending strengthASTM D 790MPa75
Flexural modulusASTM D 790MPa3000
Izod notched impact strength (23℃)ASTM D 256J/m55
Heat distortion temperature (0.455MPa)ASTM D 648160
Heat distortion temperature (1.82MPa)ASTM D 648130
FlammabilityUL 941.5mmV-2
3.0mmV-2
Glow WireIEC 60695-2-12GWFI:850/3.0Pass


Remark: The above laboratory test data are just for reference only; it's not a basis for quality assurance.

Application

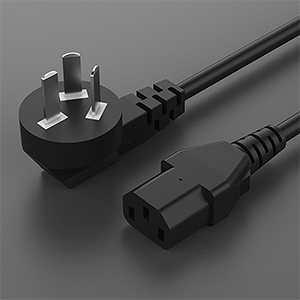

  • Plug

    Plug

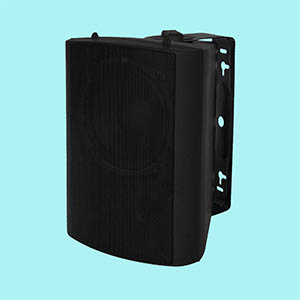

  • Outdoor wall-mounted speaker

    Outdoor wall-mounted speaker

  • Drain pump housing

    Drain pump housing
